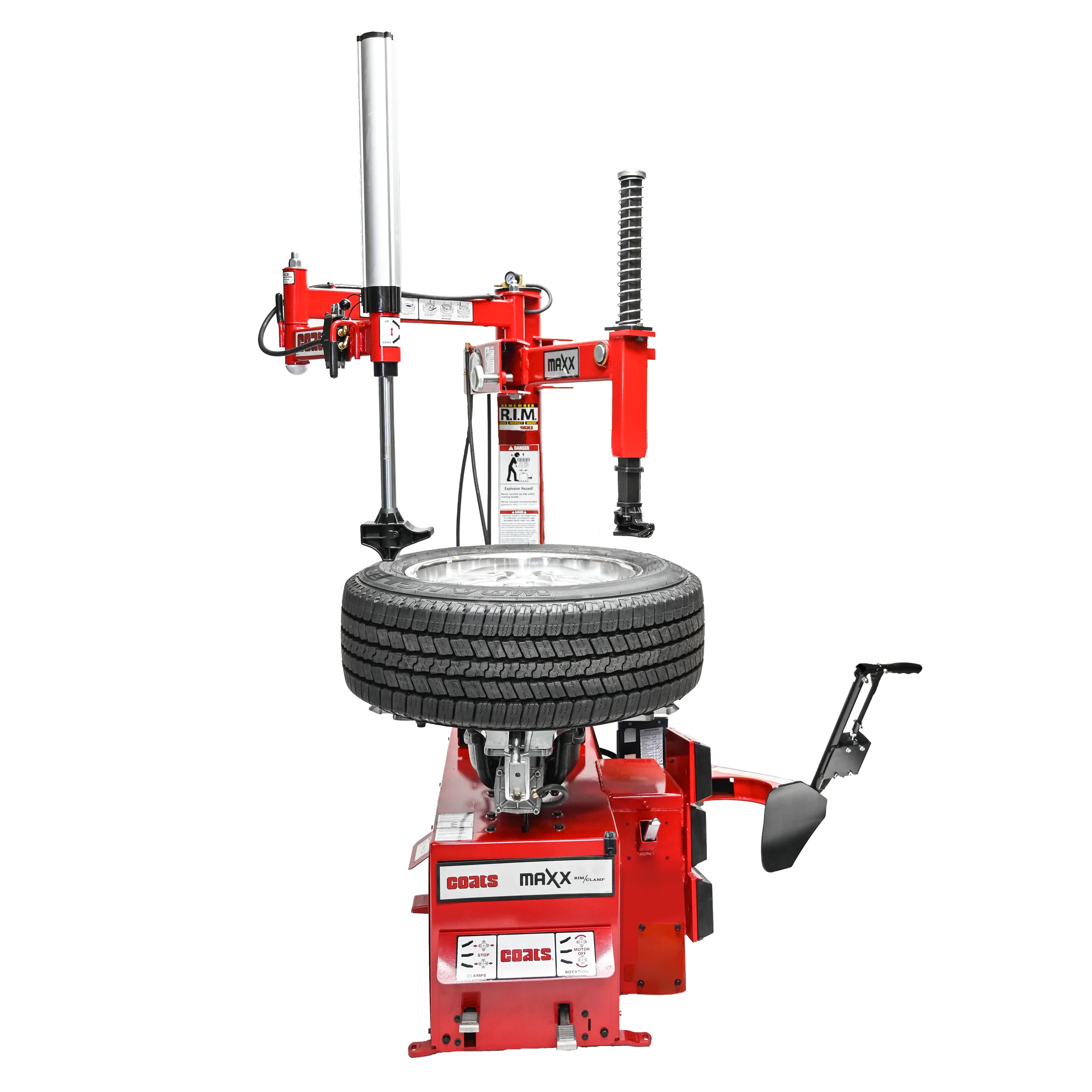

Maxx 70 Rim Clamp Tire Changer Machine
MAXX 70 Rim Clamp Tire Changer Machine
What Makes Our Maxx 70 Tire Changer Different
Durable and Reliable Chassis
Our robust chassis is not only capable of clamping extreme assemblies, but it was also tested up to 250,000 bead breaking cycles for ultimate durability in the harshest working environments to make sure it was up for the challenge.
Dual Nozzle
An increased air flow from the dual nozzle bead sealer seals tough beads twice as fast to get your jobs done more efficiently.
No Index Tabletop
Save time by not having to index the tabletop when working on large assemblies, reducing pedal presses and allowing techs to keep moving.
Talk to a coats representative today to find the right mix of technology and tools for your operation.
Our Tire Changer vs The Rest
Huge Clamping Range
Maxx 70 can tackle wheels from 6-24″ in diameter and up to 16” wide – out of the box! Anything from standard passenger car tires to 6″ lawn mower tires, all the way up to extreme 24″ wheel assemblies.
Lift heavy wheels easily and safely.
Our Maxx Wheel Lift makes even the heaviest assembly easy to manage, lifting to tabletop height with speed and ease. It can support wheel assemblies up to 150lbs at 150PSI and is operated via an easy-to-use foot pedal. Your techs feel as if the machine is working for them, not against them. Contact us about the Maxx 70 that comes with a factory installed wheel lift.
Our Tire Changers Take the Hassle Out of the Hustle
Car and Light Truck
6" - 24" External Rim Diameter
50" Max Tire Diameter
16” Max Rim Width
Hand Control Bead Loosening System
High Pressure Dual Nozzle
Swing Away Arm & Nylon Duckhead Mount/Dismount System
Robo-Arm® Bead Depressor
4 Rim Clamp, Air Cylinder Operated
220 V, 2 HP, Electric Motor
110 - 175 psi, 15 scfm Air Motor
74"w x 44"d x 88"h Footprint
-
Electric 220V Model: 800MAXX70220
-
Electric 220V with Wheel Lift: 800MAXX70220L
-
Electric 110V Model: 800MAXX70
-
Electric 110V with Wheel Lift: 800MAXX70L
-
Air: 800MAXX70A
-
Air with Wheel Lift: 800MAXX70AL
-
Ship Weight: 805 lbs
GALLERY
SPECIFICATIONS
Car and Light Truck
6" - 24" External Rim Diameter
50" Max Tire Diameter
16” Max Rim Width
Hand Control Bead Loosening System
High Pressure Dual Nozzle
Swing Away Arm & Nylon Duckhead Mount/Dismount System
Robo-Arm® Bead Depressor
4 Rim Clamp, Air Cylinder Operated
220 V, 2 HP, Electric Motor
110 - 175 psi, 15 scfm Air Motor
74"w x 44"d x 88"h Footprint
-
Electric 220V Model: 800MAXX70220
-
Electric 220V with Wheel Lift: 800MAXX70220L
-
Electric 110V Model: 800MAXX70
-
Electric 110V with Wheel Lift: 800MAXX70L
-
Air: 800MAXX70A
-
Air with Wheel Lift: 800MAXX70AL
-
Ship Weight: 805 lbs
Explore Our Maxx Tire Changer Machine Series
Maxx 50
Maxx 80
Maxx 90
