Lift More
Our 2 Post lifts have superior structural strength which provides longer life. Choose legendary reliability with state of the art capacity.

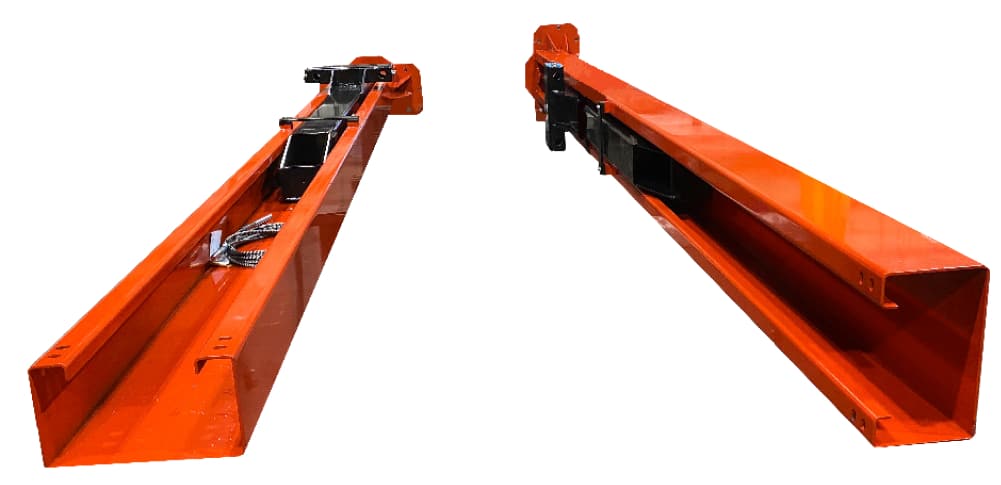

Reinforced Columns
The strong, 2” inner tube support means columns will flex less under load.
Available on:

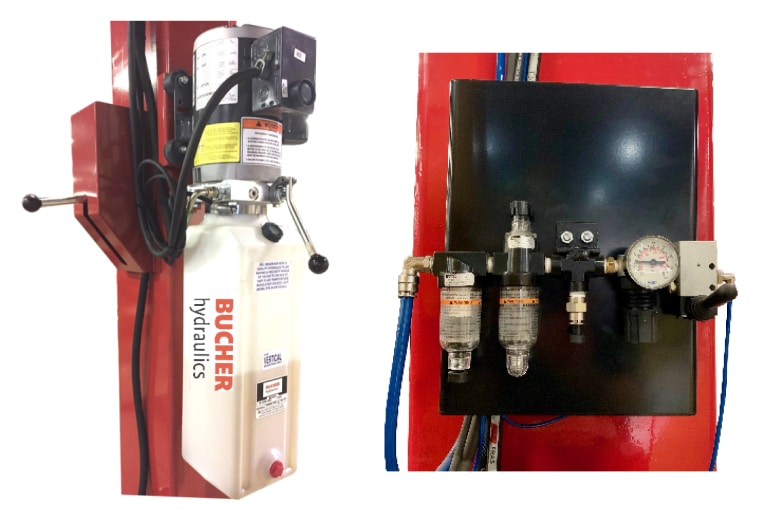

Quiet Power Units
The North American made power unit typically lasts the life of the lift, meaning less maintenance is required, and the rubber mounting grommets reduce power unit noise.
Available on:
Powder Coat Finish
Steel components are wheel-a-brator shot blasted and acid washed before a “double bake” powder coat finish is applied, which protects against structural corrosion
Available on:
Reinforced carriage arm pin holes and plated gear style arm restraints last longer with less sag, lower maintenance cost, and are also replaceable.
Reinforced Arms
Reinforced carriage arm pin holes and plated gear style arm restraints last longer with less sag, lower maintenance cost, and are also replaceable.
2N1 Arm
The “Two in One” arm design on the 10K and 12K 2N1 2 Post Lifts allows for easy access to approved lift points with 3 piece offset front and extended rear arms for asymmetric or symmetric loading.
Adapters
Drop in stacking adapters are available for the 16,000 lb. lift with 4″ pad height for cars and light trucks. Screw in style adapters for the 18,000 lb. lift have a 5″ pad height for light and medium trucks.
Strong Pulleys
Non Fatigue Equalization Cables and 5″ Steel Pulleys last longer with less maintenance and cost
Easy Operation
Lift controls can be on either column giving the operator greater flexibility. A unique COATS lock release & control on the column and ALI document holder allows for more precise raising and lowering.
Flexible Installation
Our 16K, 18K, and 20K 2 post lifts are Canada-made for all your heavy duty needs.
Legendary Reliability
Complete your shop with ALI certified Coats 2 Post Lifts. Contact your authorized Coats distributor today.
Models
Compare Any Lifts
10K 2 Post 2N1
10,000lb Capacity
138”-148” Overall Height
76” Raised Height
55 Sec Lift Time
12’6” Ceiling Height Requirement
92” Drive Thru Width
230V Power Requirements
135.5”w x “15.75”d x 148”h Footprint
12K 2 Post
12,000 lb Capacity
158 7/8” Overall Height
76” Raised Height
75 Sec Lift Time
—
89 1/8” Drive Thru Width
230V Power Requirements
137”w x 20.5”d x 154”h Footprint
16K 2 Post
16,000lb Capacity
199.5” Overall Height
76” Raised Height
70 Sec Lift Time
17′ Ceiling Height Requirement
108” Drive Thru Width
220V Power Requirements
152”w x 31”d x 199.25”h Footprint
Explore Scissor Lifts
10K Double Scissor
14K Scissor
16K Scissor
