Maxx 80 Rim Clamp Tire Changer

Engineered to Perform. Designed to Last.
Contact Us
Specs & Documents
Coats Maxx 80 tire changer image links to its product page
A metal foot pedal sticking out of the chassis controls the bead loosening shovel on the right
A black wheel attached to a telescoping arm has a handle to grab and lower and raise the wheel onto the tabletop.
The outlet plug of the C series tire changer with 3 prongs
360
Top

Features of Coats MAXX 80

Close up of a Coats Maxx 70 Tire Changer chassis

Durable and Reliable Chassis

Our robust chassis is not only capable of clamping extreme assemblies, but it was also tested up to 250,000 bead breaking cycles for ultimate durability in the harshest working environments to make sure it was up for the challenge.

2 bead sealing nozzles point at an upward angle toward a tire clamped on the tire changer

Dual Nozzle

An increased air flow seals tough beads twice as fast to get your jobs done more efficiently.

A metal foot pedal on the right side of the Maxx 90 tire changer chassis

Hand and Foot Operated Bead Loosener

Different technicians have different work styles. Giving them a choice (hand or foot) of how they do the work lets them get it done on their terms.

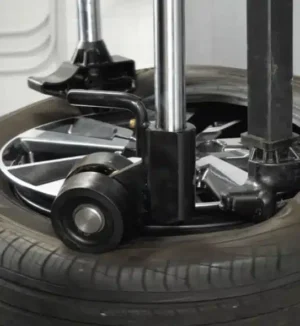

Roboroller helper device pushes down on part of the tire as the bead is being lifted and the tire is removed

Patented RoboRoller

This helper device provides additional power when mounting difficult tire assemblies and prevents the bead from rolling back over the mount tool.

Taking the Hassle Out of the Hustle

A metal foot pedal sticking out of the chassis controls the bead loosening shovel on the right
A Maxx 70, Maxx 80, and Maxx 90 tire changer lineup
A black wheel attached to a telescoping arm has a handle to grab and lower and raise the wheel onto the tabletop.

Product Manual

Product Brochure

Warranty

High Res Image

Car and Light Truck

6" - 24" External Rim Diameter

50" Max Tire Diameter

16” Max Rim Width

Hand & Foot Control Bead Loosening System

High Pressure Dual Nozzle

Swing Away Arm & Nylon Duckhead Mount/Dismount System

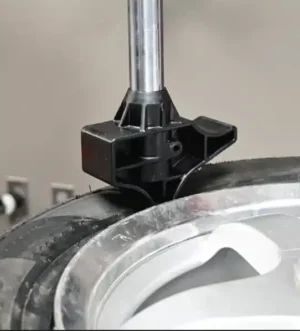

Robo-Arm® Bead Depressor

4 Rim Clamp, Air Cylinder Operated

220 V, 2 HP, Electric Motor

110 - 175 psi, 15 scfm Air Motor

74"w x 44"d x 88"h Footprint

Front diagram of a Maxx 80 showing height, width, and length, dimensions

  • Electric 220V Model: 800MAXX80220

  • Electric 220V with Wheel Lift: 800MAXX80220L

  • Electric 110V Model: 800MAXX80

  • Electric 110V with Wheel Lift: 800MAXX80L

  • Air Model: 800MAXX80A

  • Air with Wheel Lift: 800MAXX80AL

  • Electric, 2-Speed Model: 800MAXX802SPD

  • Electric, 2-Speed Model with Wheel Lift: 800MAXX802SPDL

  • Ship Weight: 850 lbs

GALLERY

A metal foot pedal sticking out of the chassis controls the bead loosening shovel on the right
A Maxx 70, Maxx 80, and Maxx 90 tire changer lineup
A black wheel attached to a telescoping arm has a handle to grab and lower and raise the wheel onto the tabletop.

DOCUMENTS

Product Manual

Product Brochure

Warranty

High Res Image

SPECIFICATIONS

Car and Light Truck

6" - 24" External Rim Diameter

50" Max Tire Diameter

16” Max Rim Width

Hand & Foot Control Bead Loosening System

High Pressure Dual Nozzle

Swing Away Arm & Nylon Duckhead Mount/Dismount System

Robo-Arm® Bead Depressor

4 Rim Clamp, Air Cylinder Operated

220 V, 2 HP, Electric Motor

110 - 175 psi, 15 scfm Air Motor

74"w x 44"d x 88"h Footprint

Front diagram of a Maxx 80 showing height, width, and length, dimensions

  • Electric 220V Model: 800MAXX80220

  • Electric 220V with Wheel Lift: 800MAXX80220L

  • Electric 110V Model: 800MAXX80

  • Electric 110V with Wheel Lift: 800MAXX80L

  • Air Model: 800MAXX80A

  • Air with Wheel Lift: 800MAXX80AL

  • Electric, 2-Speed Model: 800MAXX802SPD

  • Electric, 2-Speed Model with Wheel Lift: 800MAXX802SPDL

  • Ship Weight: 850 lbs

Explore Maxx Series

Learn More
A red colored Coats Maxx 50 tire changer with a wheel mounted on the tabletop

Maxx 50

Coats Maxx 70 tire changer image links to its product page

Maxx 70

Coats Maxx 90 tire changer image links to its product page

Maxx 90
