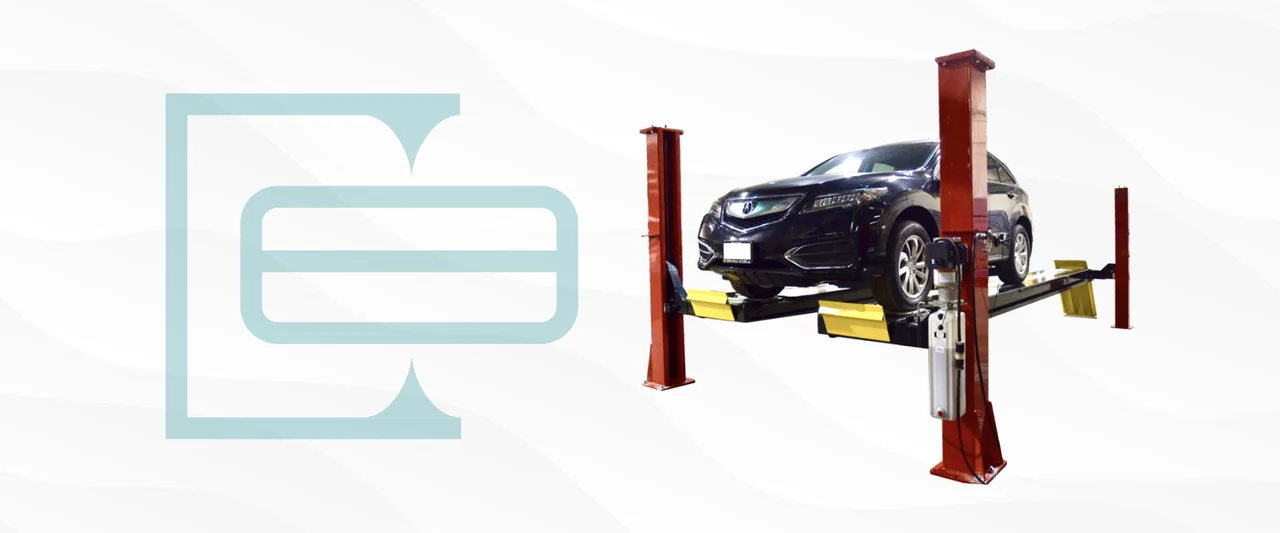

Maxx Alignment Four Post Lifts
Maxx Alignment Four Post Lifts are built for shops that need maximum stability, higher capacity, and long-term durability for wheel alignments and under-vehicle service. Available in 15,000 lb and 19,000 lb capacities, Maxx Alignment Four Post automotive lifts are the backbone of a profitable alignment bay.
Turn your bay into a revenue center
Maxx Alignment Four Post lifts are designed to lift a wide range of vehicles—including cars, SUVs, and medium-duty trucks. They’re assembled in North America and engineered with technology that keeps the lift level.
We design lifts with stability and maintenance in mind,
Engineered to be Maxx tough.
More Value and Less Maintenance by Design
The Greatest Value Alignment Kit
Every Maxx alignment scissor lift includes a complete automotive alignment lift kit with premium accessories that match the quality of the lift. Each kit comes with two heavy-duty rolling jacks backed by a 5-year parts warranty—plus an air kit, two roll back bars, and two stainless steel turn plates for accurate 3D alignments.
We Set the Bar for Four Post Lifts
ALI-Certified Lifts
All Maxx Four Post Lifts are ALI-certified by the only accredited program in North America that independently verifies whether a lift complies with all industry safety and operational standards, such as structural integrity, mechanical safety systems, hydraulic and electrical systems, and load testing.
Lift Inspections
Our Coats Service Network Lift Inspectors are tested, qualified, and ALI Certified to inspect ANY brand of automotive lift, using the ALI Check360 Certified Lift Inspection Program. You’re calling upon the only service network staffed coast to coast by our technicians.
The Maxx Lift Advantage
Strength and Safety
ALI-Certified Lifts
All Maxx Four Post Lifts are ALI-certified by the only accredited program in North America that independently verifies whether a lift complies with all industry safety and operational standards, such as structural integrity, mechanical safety systems, hydraulic and electrical systems, and load testing.
Lift Inspections
Our Coats Service Network Lift Inspectors are tested, qualified, and ALI Certified to inspect ANY brand of automotive lift, using the ALI Check360 Certified Lift Inspection Program. You're calling upon the only service network staffed coast to coast by our technicians.
MAXX LIFTS
Part of the Coats Maxx Portfolio
Maxx Alignment Four Post Lifts are part of the Coats Maxx portfolio—single-purpose technologies designed to make repetitive shop tasks faster and easier. From tire changers to lifts to air compressors, Maxx equipment does one job and does it better than anything else on the market.
Complete Your Alignment Bay
Pair a Maxx Alignment Four Post Lift with a Coats Pro Series Wheel Aligner. Whether outfitting a new shop or upgrading for higher volume, Pro Series Aligners provide intuitive, high-precision technology designed for speed and accuracy. Maxx Alignment Scissor lifts also work with most wheel aligner systems.
Maximize shop floor space with Maxx Alignment Scissor Lifts

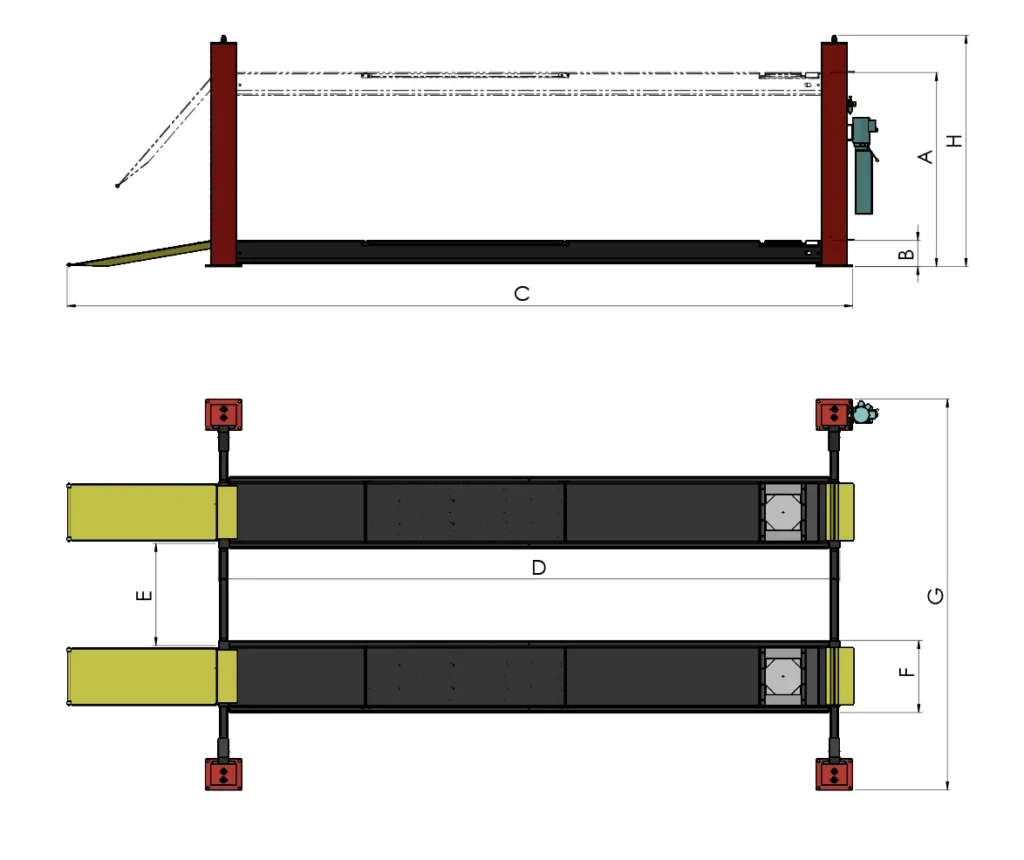

| Specification | |||
|---|---|---|---|
| N415 (Service 4 Posts) | N419 (Service 4 Posts) | ||
| Capacity | 15,000 lb/6.8 T | 19,000 lb/8.6 T | |
| Lift Style | Open Front | Closed Front | Closed Front |
| Raised Height | 75” (1,905mm) | 74” (1,880mm) | |
| Lowered Height | 8 3/8” (213mm) | 10” (254mm) | |
| Overall Length Standard | 260 1/2” (6,617 mm) | 274 3/8” (6,969mm) | |
| Overall Length Extended | 287 1/2” (7,303mm) | 301 3/8” (7,655mm) | |
| Deck Length Standard | 211” (5,359mm) | 210 3/8” (5,344mm) | |
| Deck Length Extended | 238” (6,045mm) | 238” (6,045mm) | |
| Width Between Runways | 41” (1,041mm) | 41” (1,041mm) | |
| Runway Deck Width | 23” (584mm) | 23” (584mm) | |
| Overall Width Front/Rear | 143-137 1/2” | 137 1/2” | 150” (3,810mm) |
| Max Column Height | 101 1/2” (2,587mm) | 86” (2,184mm) | 86” (2,184mm) |
| 4 Wheel Base (Standard) | min: 84”, max: 198” | min: 84”, max: 198” | |
| 2 Wheel base (Extended) | max: 226” | max: 226” | |
| Lift Time | 70 seconds | 70 seconds | |
| Power Requirements | 230V, 60Hz, 1 Ph, 25 amp | 230V, 60Hz, 1 Ph, 25 amp | |
| Recommended Jacking Beam | 7,500 lb/3.5 T | 9,000 lb/4.1 T | |
| ALI Certified | Yes (see part numbers) | Yes (see part numbers) | |
| Part Numbers: | Open: 4T415OSSR1 / 4T415OXSR1 Closed: 4T415CSSR1 / 4T415CXSR1 | Closed: 4T419CSSR1 / 4T419CXSR1 | |
| Warranty | 1 year parts (1 year freight on all parts), 1 year labor 5 Years on Lift Structural Parts: columns, carriage blocks, overhead support, arms 2 Years on Lift Hydraulic Parts: power lift, hydraulic lines, hydraulic cylinders | 1 year parts (1 year freight on all parts), 1 year labor 5 Years on Lift Structural Parts: columns, carriage blocks, overhead support, arms 2 Years on Lift Hydraulic Parts: power lift, hydraulic lines, hydraulic cylinders | |
Complete Your Alignment Bay
Pair a Maxx Alignment Four Post Lift with a Coats Pro Series Wheel Aligner. Whether outfitting a new shop or upgrading for higher volume, Pro Series Aligners provide intuitive, high-precision technology designed for speed and accuracy. Maxx Alignment Scissor lifts also work with most wheel aligner systems.
MAXX ALIGNMENT LIFT COMPATIBLE accessories
Heavy Duty Premium Rolling Jack
Air Kit
#TSKAT
Stainless Steel Front Turn Plates
#TSSTP
Turn Plate Roll Back Bars
#TTPRBB
Frequently Asked Questions
15,000 lb and 19,000 lb capacities.
Standard four post lifts require a bay 14′ to 16′ wide and 20′ to 28′ long with 10′ ceiling height. Wheelbase capability of the lift determines actual bay length.
Yes. Maxx Alignment Four Post Automotive Lifts are available in standard and extended runway length models. They can be equipped with drive thru kits too.
Lifts should always be installed on level concrete floors with a minimum of 4 inches (102 mm) and 3000 psi (20.7MPa) concrete aged for a minimum of 30 days. Our alignment four post automotive lifts require a 25 amp circuit breaker. All lifts must be installed to meet local building and electrical codes.
Yes. All Maxx Four Post Automotive Lifts meet ANSI/ALI safety and operational standards.
