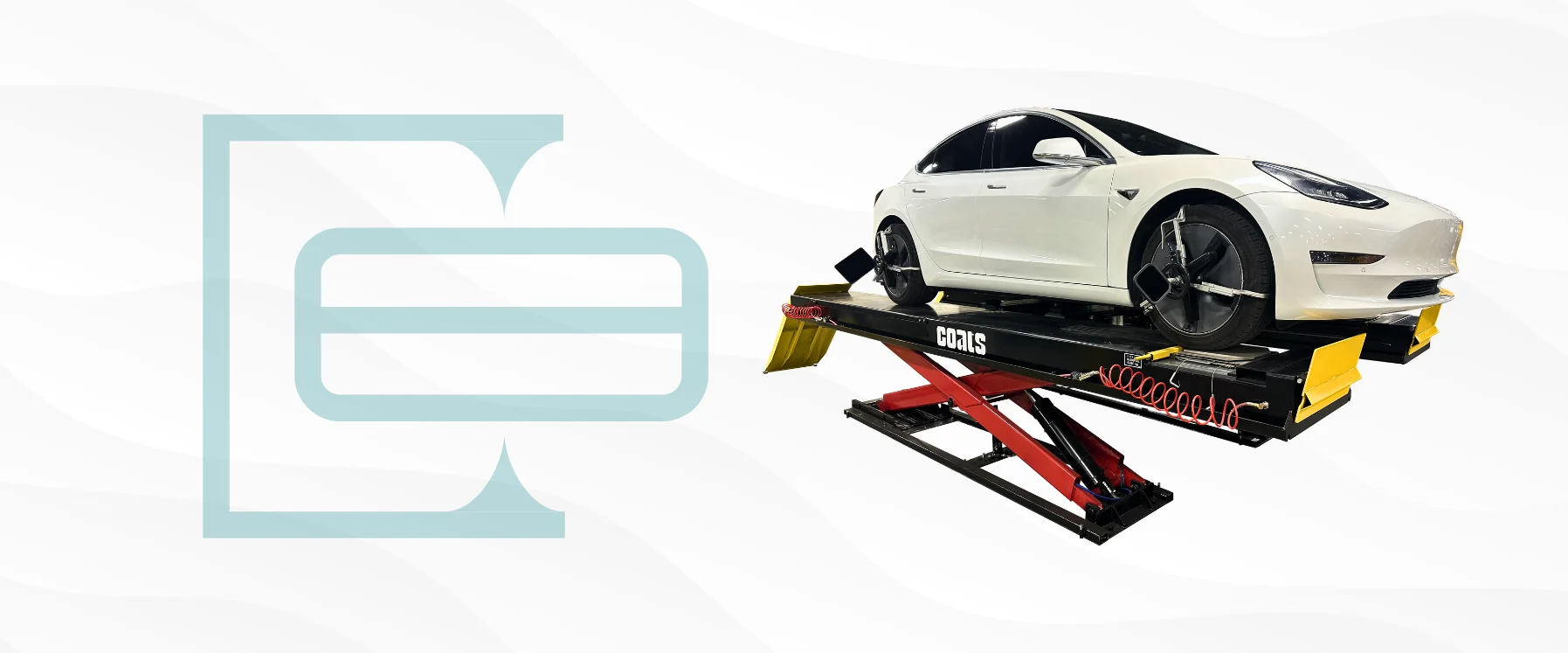

Coats Maxx Alignment Scissor Lifts | 12K, 14K & 16K Alignment Lifts
Maxx Alignment Scissor Lifts are some of the most durable scissor lifts you can find u002du002d Space-efficient, drive-on lifts engineered for high-volume 3D alignments, designed for tire dealers, dealerships, and multi-location shops. Available in 12,000lb, 14,000lb, and 16,000lb capacities, they’re designed with technologies that keep the runways level. rn
Your Premium Scissor Lift for 3D Alignments
u003cspan data-teams=u0022trueu0022u003eAlignment accuracy depends on a lift that stays level — even after years of uneven loads and repetitive use. Every technology and structural component in a Maxx Alignment Scissor Lift works together to keep runways level and structural rigidity over the lifetime of the lift. If your shop performs daily 3D alignments, this is the lift your accuracy depends on, so you maximize alignment service revenue. Plus, Maxx scissor lifts come in flush or surface mount configurations. u003c/spanu003e
We build the strongest alignment scissor lifts,
Engineered to be Maxx tough.
Strength, Engineering u0026 Technology Built to Perform
The Greatest Value Alignment Kit
Every Maxx alignment scissor lift includes a complete automotive alignment lift kit with premium accessories that match the quality of the lift itself. Each kit comes with two heavy-duty rolling jacks backed by a 5-year parts warranty—plus an air kit, two roll back bars, and two stainless steel turn plates for accurate 3D alignments.
Built Heavier. Built Smarter. Built Maxx Tough.
The Maxx Lift Advantage
Strength and Safety
Lifts Built for Safety
All Maxx Scissor Lifts comply with all industry safety and operational standards, such as structural integrity, mechanical safety systems, hydraulic and electrical systems, and load testing.
Lift Inspections
Our Coats Service Network Lift Inspectors are tested, qualified, and ALI Certified to inspect ANY brand of automotive lift, using the ALI Check360 Certified Lift Inspection Program. You're calling upon the only service network staffed coast to coast by our technicians.
Maximize shop floor space with Maxx Alignment Scissor Lifts
u003cp style=u0022text-align: center;u0022u003eu003cimg class=u0022wp-image-9291 aligncenteru0022 src=u0022https://coatscompany.com/wp-content/uploads/2026/05/Scissor-Lift-Dimmensions-1-300×130.webpu0022 alt=u0022u0022 width=u0022397u0022 height=u0022172u0022 /u003e u003cimg class=u0022wp-image-9292 aligncenteru0022 src=u0022https://coatscompany.com/wp-content/uploads/2026/05/Alignment-Scissor-Lift-Dimmensions-2-300×115.webpu0022 alt=u0022u0022 width=u0022389u0022 height=u0022149u0022 /u003eu003c/pu003ernu0026nbsp;
| Specification | |||
|---|---|---|---|
| NS12 Alignment Scissor | NS14 and NS16 Alignment Scissor | ||
| Capacity | 12,000 lb/5.4 T | 14,000 lb/6.4 T | 16,000 lb/7.3 T |
| A Raised Height | Surface: 74” Flush: 63 1/4” | Surface: 74” Flush: 63 1/4” | |
| B Lowered Height | 10 3/4” (273mm) | 10 3/4” (273mm) | |
| C Overall Length (lowered) | Surface: 242 3/4” Flush: 213” | Surface: 260 3/4” Flush: 231” | |
| D Deck Length Standard | 185” (4,700mm) | 203” (5,156mm) | |
| E Width Between Runways | 41” (1,041mm) | 41” (1,041mm) | |
| F Runway Deck Width | 26” (660mm) | 26” (660mm) | |
| G Overall Width Front/Rear | 91 1/2” (2,324mm) | 91 1/2” (2,324mm) | |
| Drive on Height | Surface: 10 3/4” Flush: 0” | Surface: 10 3/4” Flush: 0” | |
| Min 4 Wheel Alignment Wheelbase | 84” (2,134mm) | 84” (2,134mm) | |
| Max 4 Wheel Alignment Wheelbase | 160” (4,064mm) | 160” (4,064mm) | |
| Max 2 Wheel Alignment Wheelbase | 164” (4,165mm) | 182” (4,623mm) | |
| Lift Time | 58 Seconds | 58 Seconds | |
| Power Requirements | 230V, 60Hz, 1 Ph, 30 amp | 230V, 60Hz, 1 Ph, 30 amp | |
| Rec. Jacking Beam | 6,000 lb | 7,000 lb | 8,000 lb |
| Part Numbers: Surface Mount Flush Mount | 8KSC12KITP (Alignment Lift Kit)u003cbru003e4TS12OSAR1 (Model Name: NS12A) u003cbru003e4TS12OSAR1FM (Model Name: NS12AFM) | 8KSC14KITP (Alignment Lift Kit) u003cbru003e4TS14OSAR1 (Model: NS14A) u003cbru003e4TS14OSAR1FM (Model: NS14AFM) | 8KSC16KITP (Alignment Lift Kit u003cbru003e 4TS16OSAR1 (Model: NS16A) u003cbru003e4TS16OSAR1 (Model: NS16AFM) |
| Warranty | 1 year parts (1 year freight on all parts), 1 year laboru003cbru003e5 Years on Lift Structural Parts: columns, carriage blocks, overhead support, arms u003cbru003e2 Years on Lift Hydraulic Parts: power lift, hydraulic lines, hydraulic cylinders | ||
Maxx Alignment Scissor Lift Accessories
Heavy Duty Premium Rolling Jack
Air Kit
#4TSKAT
Stainless Steel Front Turn Plates
#4TSSTP
Turn Plate Roll Back Bars
#4TTPRBB
Complete Your Alignment Bay
u003cspan data-teams=u0022trueu0022u003ePair a Maxx Alignment Scissor Lift with a Coats Pro Series Wheel Aligner. Whether outfitting a new shop or upgrading for higher volume, Pro Series Aligners provide intuitive, high-precision technology designed for speed and accuracy. Maxx Alignment Scissor lifts also work with most wheel aligner systems.u003c/spanu003e
MAXX LIFTS
Part of the maxx lifts portfolio
Maxx Alignment Scissor Lifts are part of the Coats Maxx portfolio—single-purpose technologies designed to make repetitive shop tasks faster and easier. From tire changers to lifts to air compressors, Maxx equipment does one job and does it better than anything else on the market.
Frequently Asked Questions
u003cspan style=u0022font-weight: 400;u0022u003e12,000 lb, 14,000 lb, and 16,000 lb capacities. u003c/spanu003e
u003cspan style=u0022font-weight: 400;u0022u003eStandard scissor lifts require a bay 10′ to 12′ wide and 20′ to 28′ long with 10′ ceiling height. Wheelbase capability of the lift determines actual bay length required.u003c/spanu003e
u003cspan style=u0022font-weight: 400;u0022u003eLifts should always be installed on level concrete floors with a minimum of 4 inches (102 mm) and 3000 psi (20.7MPa) concrete that has been aged a minimum of 30 days. Our scissor lifts require a 30 amp circuit breaker. All lifts must be installed to meet local building and electrical codes.u003c/spanu003e
u003cspan style=u0022font-weight: 400;u0022u003eYes. Maxx Alignment Scissor Lifts are available in both flush mount and surface mount configurations. u003c/spanu003e
