MAXX LIFTS

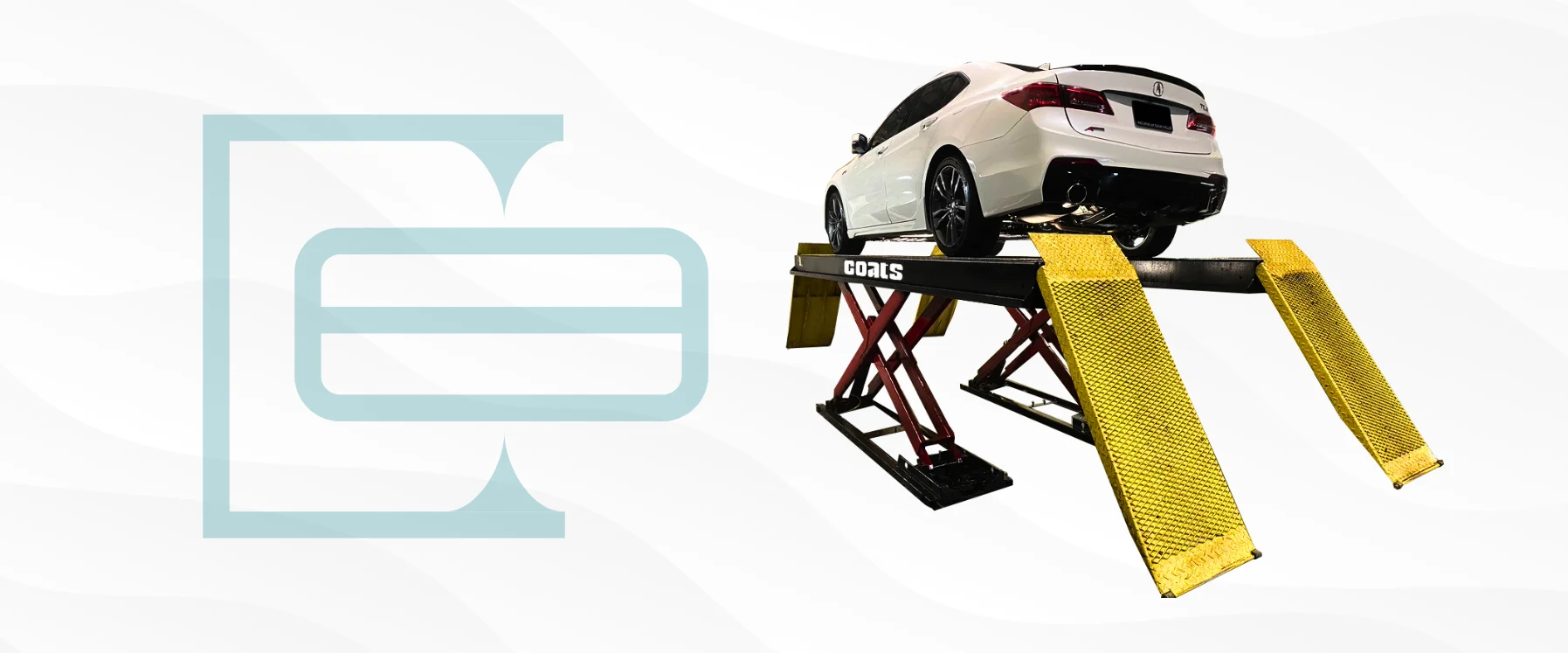

Maxx Service Platform Scissor Lifts
Maxx Service Scissor Lifts are some of the most durable scissor lifts you can find. Space-efficient, drive-on lifts engineered for high-volume tire dealers, dealerships, and multi-location shops. Available in 12,000lb, 14,000lb, and 16,000lb capacities.
Your Premium Scissor Lift
Every technology and structural component in a Maxx Service Scissor Lift work together to keep runways level and structural rigidity over the lifetime of the lift – withstanding thousands of lifting cycles. Get all undercarriage vehicle maintenance done on a Maxx Service Scissor Lift.
We engineer scissor lifts
to be maxx tough
Strength, Engineering & Technology
Runways that Never Flex
Maxx service scissor lifts feature double-walled runways reinforced with an internal Z-rail. With this heavy-duty runway design that prevents flex and warping under uneven loads, your automotive lift platform remains stable over many years of use with no maintenance needed.
Resilience built into every component.
Maximize shop floor space with Maxx Service Scissor Lifts
Specifications
| NS 12 Alignment Scissor | NS 14 Alignment Scissor | NS 16 Alignment Scissor | |
| Capacity | 12,000 lb/5.4 T | 14,000 lb/6.4 T | 16,000 lb/7.3 T |
| Raised Height | Surface: 74” Flush: 63 1/4” | Surface: 74” | Flush: 63 1/4” |
| Lowered Height | 10 3/4” (273mm) | 10 3/4” (273mm) | |
| Overall Length (lowered) | Surface: 242 3/4” Flush: 213” | Surface: 260 3/4” Flush: 231” | |
| Deck Length Standard | 185” (4,700mm) | 203” (5,156mm) | |
| Width Between Runways | 41” (1,041mm) | 41” (1,041mm) | |
| Runway Deck Width | 26” (660mm) | 26” (660mm) | |
| Overall Width Front/Rear | 91 1/2” (2,324mm) | 91 1/2” (2,324mm) | |
| Drive on Height | Surface: 10 3/4” Flush: 0” | Surface: 10 3/4” | Flush: 0” |
| Min 4 Wheel Alignment Wheelbase | 84” (2,134mm) | 84” (2,134mm) | |
| Max 4 Wheel Alignment Wheelbase | 160” (4,064mm) | 160” (4,064mm) | |
| Max 2 Wheel Alignment Wheelbase | 164” (4,165mm) | 182” (4,623mm) | |
| Lift Time | 58 Seconds | 58 Seconds | |
| Power Requirements | 230V, 60Hz, 1 Ph, 30 amp | 230V, 60Hz, 1 Ph, 30 amp | |
| Rec. Jacking Beam | 6,000 lb | 7,500 lb | 8,000 lb |
| ALI Certified | Yes (see part numbers) | Yes (see part numbers) | Yes (see part numbers) |
|
Part Numbers: Surface Mount Flush Mount |
8KSC14KITP (Alignment Lift Kit) 4TS12OSAR1 (Model Name: NS 12A) 4TS12OSAR1FM (Model Name: NS 12AFM) |
8KSC14KITP (Alignment Lift Kit) 4TS14OSAR1 (Model: NS 14A) 4TS14OSAR1FM (Model: NS14AFM) |
8KSC16KITP (Alignment Lift Kit) 4TS16OSAR1 (Model: NS16A) 4TS16OSAR1 (Model: NS16AFM) |
| Warranty |
1 year parts (1 year freight on all parts), 1 year labor 5 Years on Lift Structural Parts: columns, carriage blocks, overhead support, arms 2 Years on Lift Hydraulic Parts: power lift, hydraulic lines, hydraulic cylinders |
1 year parts (1 year freight on all parts), 1 year labor 5 Years on Lift Structural Parts: columns, carriage blocks, overhead support, arms 2 Years on Lift Hydraulic Parts: power lift, hydraulic lines, hydraulic cylinders | 1 year parts (1 year freight on all parts), 1 year labor 5 Years on Lift Structural Parts: columns, carriage blocks, overhead support, arms 2 Years on Lift Hydraulic Parts: power lift, hydraulic lines, hydraulic cylinders |
The Maxx Lift Advantage
Strength and Safety
Lifts Built for Safety
All Maxx Scissor Lifts comply with all industry safety and operational standards, such as structural integrity, mechanical safety systems, hydraulic and electrical systems, and load testing.
Lift Inspections
Our Coats Service Network Lift Inspectors are tested, qualified, and ALI Certified to inspect ANY brand of automotive lift, using the ALI Check360 Certified Lift Inspection Program. You're calling upon the only service network staffed coast to coast by our technicians.
MAXX ALIGNMENT LIFT COMPATIBLE accessories
Rolling Waste Oil Drain
#T4RWOD
Moveable Work Steps
#TMWS
Tire Inflation Kit
#TTIL
LED Light Kit
#TLED1
18" Rear Runway Extensions
MAXX LIFTS
Part of the Coats Maxx Portfolio
Maxx Alignment Scissor Lifts are part of the Coats Maxx portfolio—single-purpose technologies designed to make repetitive shop tasks faster and easier. From tire changers to lifts to air compressors, Maxx equipment does one job and does it better than anything else on the market.
Frequently Asked Questions
12,000 lb, 14,000 lb, and 16,000 lb capacities are avaliable for our automotive scissor lifts.
Coats service platform scissor lifts require a bay 10′ to 12′ wide and 20′ to 28′ long with 10′ ceiling height. Wheelbase capability of the lift determines actual bay length required.
Lifts should always be installed on level concrete floors with a minimum of 4 inches (102 mm) and 3000 psi (20.7MPa) concrete that has been aged a minimum of 30 days. Our scissor lifts require a 30 amp circuit breaker. All lifts must be installed to meet local building and electrical codes.
Yes. Maxx Service Scissor Automotive Lifts are available in both flush mount and surface mount configurations.
