RC Series Balancers
RC 450 & RC 550
Wheel Balancers

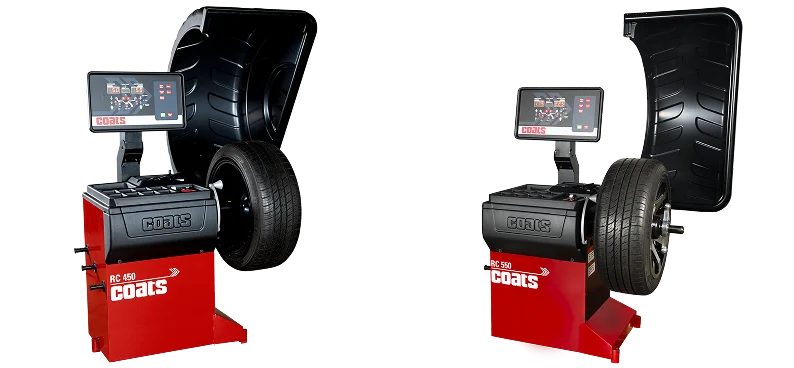

The RC 450 and RC 550 are Coats' compact wheel balancer machines meant for passenger car and light truck OEM fitments. Whether you’re tight on space, need extra capacity for busy seasons, or expanding tire services, RC Balancers are ready to use with your existing shop space and power setup – no additional outlet needed.
RC Wheel Balancer Machines expand your tire business
without compromising your shop setup.
Make Every Square Foot In Your Shop Work Harder
We offer two models suitable for OEM fitments that run on standard 115V power—ready to plug in and get to work right away, no additional outlet required. RC Balancers incorporates feedback from U.S technicians that are easy to use and deliver reliable results for day-to-day balancing. Plus, they are backed by the Coats Connect Service Network.
2 Balancer machines. 1 Reliable series. varying Levels of Automation.
Whether you need a dependable everyday balancer or advanced automation for a growing shop, the RC Series has you covered.
6 o'clock laser guide
The built-in laser projects at the bottom of the wheel barrel to show techs where tape weights should go, ensuring accurate weight applications. Easy applications, less guesswork
Auto Approach
The built-in laser projects at the bottom of the wheel barrel to show techs where tape weights should go, ensuring accurate weight applications. Easy applications, less guesswork
Static On Screen
All RC Balancer Machines feature a final quality check that shows any residual static unbalances which can result from round-off or small weight placement errors. It gives techs an opportunity to fix the static unbalance to give customers a smooth ride the first time, every time.
automatic data entry (2d & 3d)
The AD measurement arm on the RC 450 and 550 is the primary way to capture dimensions. The RC 450’s smart 2-dimension auto data entry automatically detects the desired weight placement mode, which increases data accuracy and productivity. The RC 550 has 3D auto data entry to provide more speed and convenience.
More details
| RC 450 | RC 550 | |
|---|---|---|
| Wheel Diameter | 10″ – 30″ | 10″ – 30″ |
| Wheel Width Range | 4″ – 16″ | 4″ – 16″ |
| Maximum Weight | 130 lbs | 130 lbs |
| Shaft Diameter | 40 mm | 40 mm |
| Footprint | 51.1″ x 58.4″ x 70.3″ (width x depth x height) | 51.1″ x 58.4″ x 70.3″ (width x depth x height) |
| Interface | Touchpanel with soft touch buttons and LEDs | Touchpanel with soft touch buttons and LEDs |
| Automatic Data Entry | 2 Dimension (Offset Distance and Diameter) | 3 Dimension (Offset Distance and Diameter) |
| Electrical Requirements | 115V | 115V |
| Warranty | 1 year parts, 6 months labor | 1 year parts, 6 months labor |
| Part Numbers | 800RC450V1 | 800RC550V1 |
The RC Series Advantage
Backed by our Connect Service Network
Training & Install Included
Serviced by Product Experts
RC Balancers are supported by Coats Connect the industry’s only service network staffed coast to coast by our own factory-trained techs and product support pros who actively manage our dispatch team from call to completion. We set up your equipment, provide on- site training, and offer unmatched access to OEM parts, manufactured to meet the unique specifications of our systems.
Benefits of our Coats Connect Service Network
- Coast to Coast support, based in Nashville
- Field Servive
- Access to OEM Parts
- Scheduled Service
RC Balancer accessories
RC 450 and RC 550 Included Accessories
| 8112098 | Small A Cone |
| 8112099 | Medium B Cone |
| 8112100 | Large C Cone |
| 8112101 | Light Truck D Cone |
| 8113175 | Premium Wheel Weight Hammer |
| 8309011 | Calipers |
| 8112103 | Hub Nut |
| 8112106 | Small Pressure Drum with Ring |
| 8112421 | Short Cone |
Optional Accessories
2-Jaw Slide Nut Kit
#5009998
Truck Cone Kit, Double Sided, 4.8"-6.8"
In Between Cone Set
#8113795
RC Series
Build A Full Shop With The RC Series
RC Wheel Balancers are the perfect complement to your RC Tire Changers. With core, proven technologies, they work together so aftermarket shops can perform tire services on OEM passenger car and light truck wheel fitments, and to generate additional revenue—all within their existing space and setup. The RC Series is part of the Coats full shop portfolio of technologies and services that keep people moving and technology turning.
Frequently Asked Questions
Both models include a 1-year parts and 6-month labor warranty, backed by the Coats Connect Service Network. Because RC balancers are set up by factory-trained Coats technicians rather than a third-party distributor, your warranty coverage starts on the right foot from day one. Full details are in the Coats Product Warranties document.
Each unit measures 51.1" wide x 58.4" deep x 70.3" high, one of the most compact footprints in the Coats balancer lineup. Combined with standard 115V power, that means an RC balancer can slot into an existing corner of your shop without bay reconfiguration or electrical work.
Yes. Coats Connect handles equipment setup and provides on-site training as part of the RC Series package, so your technicians are productive from the first day. Ongoing support includes field service, scheduled service, and OEM parts access, all dispatched from the coast-to-coast Coats network based in Nashville.
That's one of its core use cases. Because it plugs into standard 115V power with no added outlet, an RC balancer is an easy way to add overflow capacity during tire season alongside your primary balancer, then keep earning as a dedicated machine for quick, everyday OEM fitment work the rest of the year.
Beyond the included cone set, hub nut, pressure drum, calipers, and weight hammer, Coats offers the 2-Jaw Slide Nut Kit, a double-sided Truck Cone Kit (4.8"–6.8"), and the In Between Cone Set. Many accessories from the Coats ProBalance line are also compatible, so existing Coats shops can extend fitment coverage without duplicate purchases.
Both models handle wheel assemblies up to 130 lbs on a 40mm shaft, the same shaft diameter used across Coats premium balancers. That covers the vast majority of OEM passenger car, CUV, and light truck fitments coming through an aftermarket shop.
The RC 450 is part number 800RC450V1 and the RC 550 is 800RC550V1. Reference these when requesting a quote through the Coats contact page or when speaking with a rep at (800) 688-6359; the RC Balancers Solution Sheet has the full spec comparison.
