Coats Maxx 16K & 20K Heavy Duty Two Post Lifts | Fleet & Government Vehicle Lifts

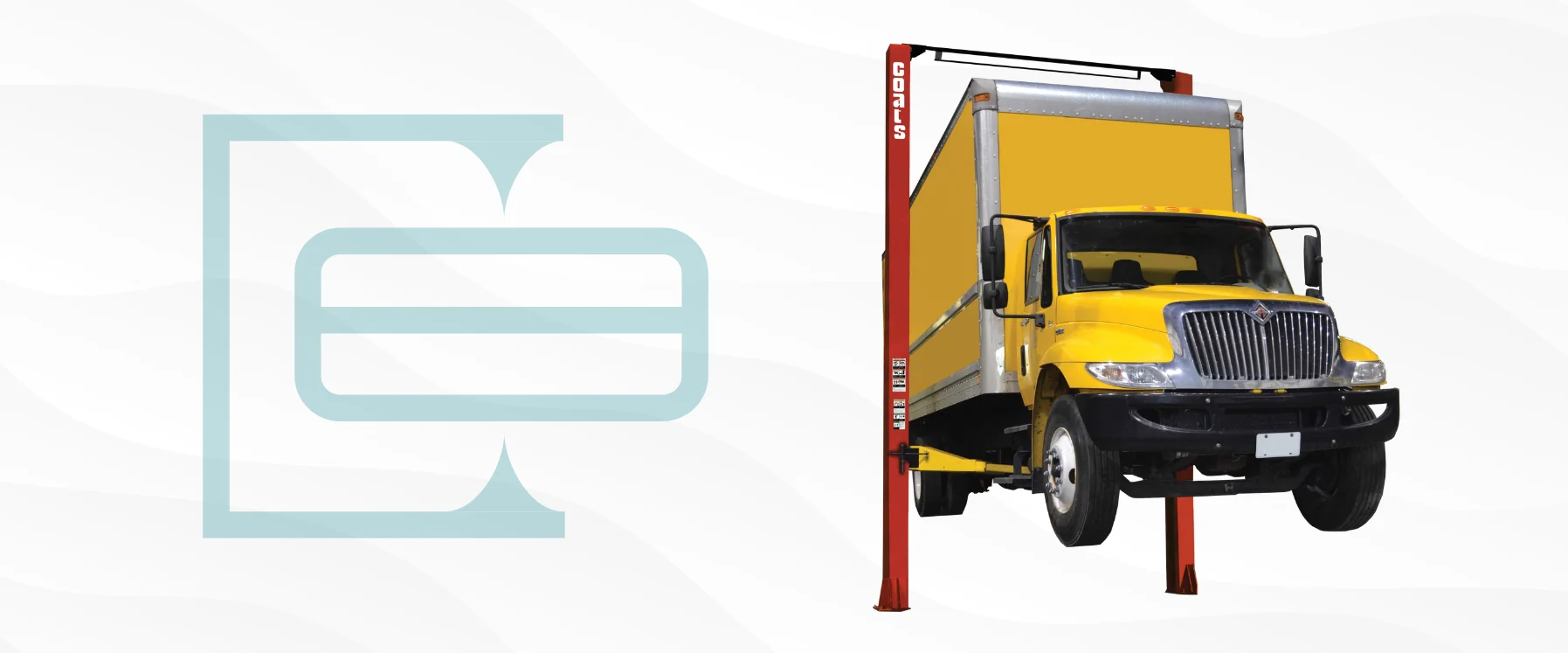

Maxx 16,000 lb and 20,000 lb Heavy Duty Two Post Lifts are built for fleet maintenance facilities and government service operations working on extra-wide, tall, and heavy vehicles. Designed for long-term durability and low maintenance, these lifts deliver the strength, accessibility, and stability required to keep medium and heavy-duty trucks in service.
Built Maxx Tough for Fleet Operations
Maxx Heavy Duty Two Post Lifts are symmetric heavy duty automotive lifts engineered specifically for fleet maintenance facilities and government vehicle service departments. Available in 16,000 lb and 20,000 lb capacities, these commercial truck two post lifts are built to lift the same heavy vehicles—day after day—without sacrificing stability. If you’re servicing heavy-duty trucks, this is the heavy duty lift your facility can rely on.
Maxx Heavy Duty Two Post Lifts bring lifetime strength with a lower lifetime cost.
Strength You Can Rely On. Power You Can Trust.
Built and tested for strength
Heavy-duty lifting demands structural stability that holds up under pressure over time. Maxx HD Two Post Lifts are built with reinforced structural components designed for repeated heavy truck lifting. Every lift is third-party proof-load tested at 1.5× its rated capacity for verified strength.
Built Heavier. Built Smarter. Built Maxx Tough.
Engineered for heavy duty lifting
| Specification | N216 (Symmetric) | N220 (Symmetric) |
|---|---|---|
| Capacity | 16,000 lb/7.3T | 20,000 lb/9 T |
| A Overall Height | 199 1/2” (5,067mm) (optional custom height avaliable) | 199 1/2” (5,067mm) (optional custom height avaliable) |
| B Overall Width | 152” (3,861 mm) | 152” (3,861mm) |
| C Width Between Columns | 120 1/2” (3,061mm) | 120 1/2” (3,061mm) |
| D Drive Thru Width | 106 1/2” (2,711mm) | 106 1/2” (2,711mm) |
| E Under Bar Clearance | 192 1/2” (4,890mm) | 192 1/2” (4,890mm) |
| F Lowered Height (standard pad fully in) | 4” (114mm) | 5” (127mm) |
| G Raised Height (standard pad fully out) | 76” (1,930mm) | 76” (1,930mm) |
| H Raised Height (with extensions) | 87 1/2” (2,222mm) | 85 1/2” (2,127mm) |
| I Front Arm Reach | 34” - 62” (864mm - 1,575mm) | 34” – 62” (864mm – 1,575mm) |
| J Rear Arm Reach | 34” - 62” (864mm - 1,575mm) | 34” – 62” (864mm – 1,575mm) |
| Lifting Time | 75 seconds | 75 seconds |
| Standard Power Requirements | 230V, 1PH, 60Hz, 20amp 4HP/2kw motor | 230V, 1PH, 60Hz, 20amp 4HP/2kw motor |
| Shipping Weight | 3,350 lb | 3,850 lb |
| Part Numbers | 4T216SSR1 (Red) 4T216SSB1 (Blue) | 4T220SSR1 (Red) 4T220SSB1 (Blue) |
The Maxx Lift Advantage
Strength and Safety
ALI-Certified Lifts
All Maxx Heavy Duty Two Post lifts are ALI-certified by the only accredited program in North America that independently verifies whether a lift complies with all industry safety and operational standards, such as structural integrity, mechanical safety systems, hydraulic and electrical systems, and load testing.
Lift Inspections
Our Coats Service Network Lift Inspectors are tested, qualified, and ALI Certified to inspect ANY brand of automotive lift, using the ALI Check360 Certified Lift Inspection Program. You're calling upon the only service network staffed coast to coast by our technicians.
Maxx Heavy Duty Two Post Lift Accessories
Drop In Adapter Set for 16K 2 Post
Screw In Adapters for 20K 2 Post
MAXX LIFTS
Build full shop with the Maxx Series
Maxx N216 and N220 are part of the Maxx Series, which includes single purpose technologies for high performing vehicle repair shops, like tire changers, automotive lifts, and air compressors that do one job and do it better than any other on the market today
Frequently Asked Questions
These heavy duty two post lifts are designed for commercial vans, ambulances, utility vehicles, and medium-duty trucks under 20,000 lb curb weight, making them ideal for fleet maintenance and government service facilities.
Heavy duty two post lifts require a 16′ ceiling height. Bay size depends on how the lift is positioned and the wheelbase of the vehicles being serviced.
Lifts should always be installed on level concrete floors with a minimum of 4 inches (102 mm) and 3000 psi (20.7MPa) concrete that has been aged a minimum of 30 days. Most two post lifts require a constant supply of 230 volt – 1 phase – 60 Hz electrical power and a 20 amp circuit breaker.
Yes. All Maxx N216 and N220 heavy duty two post lifts are ALI-certified and meet ANSI/ALI ALCTV safety standards for structural integrity, load testing, hydraulics, and mechanical safety systems
Yes. Coats Connect Service offers ALI-certified inspections for any brand of lift. rnWe send our own factory trained, ALI-certified service techs to perform these lift inspections. rn
Hydraulic oil cannot be shipped with the lift and must be purchased locally. Please confirm with the lift installer that hydraulic oil is included in the installation price.
Freight and offloading costs are not included in the price of the lift. Please confirm both these costs before making a final decision.
Installation costs are not included in the price of the lift. Please confirm all installation costs (permits if required, material, electrical, hydraulic oil, labor and other costs) before making a final decision.
