MAXX LIFTS

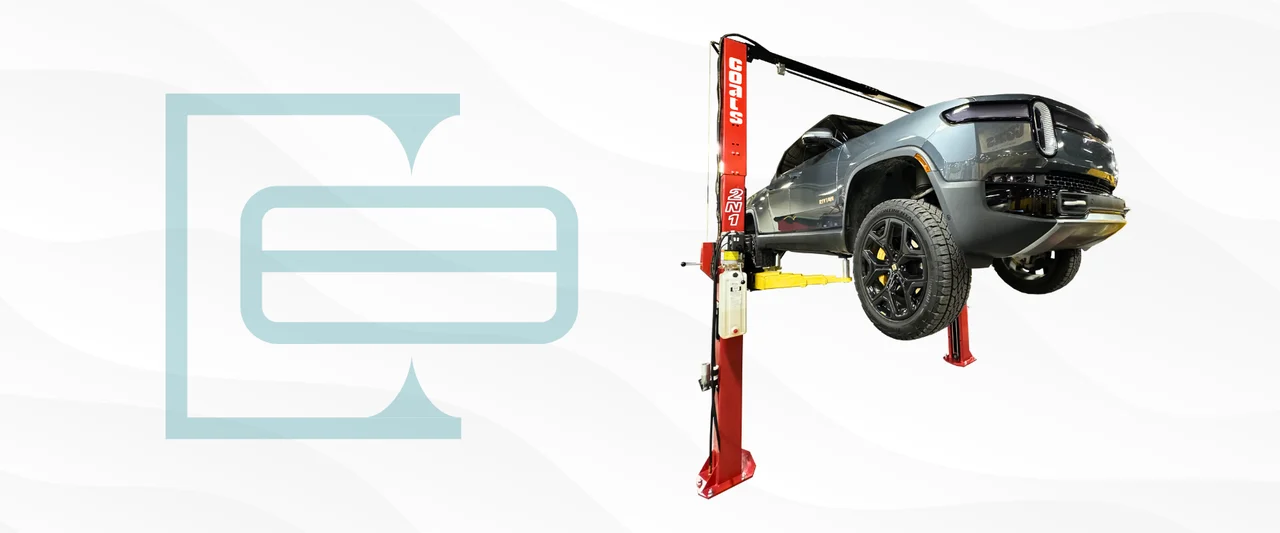

N210 and N212 Two Post Lifts
Maxx N2 Series Two Post Lifts are built for shops that lift vehicles all day and expect their equipment to hold up. Available in 10,000 lb and 12,000 lb capacities, these lifts deliver the durability, safety, and consistency of national tire dealers and multi-location operators need to keep bays moving.
Standardize Your Bays with Proven Performance.
Maxx N210 and N212 Two Post Lifts are the operating tables your techs rely on for tire, wheel, and under-vehicle service. We offer 10,000lb and 12,000lb capacities in Flexmetric (2N1) and Symmetric configurations. They bring the most lifting flexibility, durability, and power efficiency.
Maxx Two Post Lifts bring durability
and confidence you can work under.
Choose a configuration that fits your shop
Two Lifting Styles in One Lift
Coats Flexmetric lifts have a 2N1 arm system that gives techs the best of both worlds because the 3-piece offset, adjustable arms let techs load vehicles either symmetrically or asymmetrically—whichever the job requires. The asymmetric arms are designed to lift without obstructing the car doors, so techs can access the vehicle interior easier for jobs that require cabin access.
Long Term Performance in Every Detail
Two Lifting Styles in One Lift
Coats Flexmetric lifts have a 2N1 arm system that gives techs the best of both worlds because the 3-piece offset, adjustable arms let techs load vehicles either symmetrically or asymmetrically—whichever the job requires. The asymmetric arms are designed to lift without obstructing the car doors, so techs can access the vehicle interior easier for jobs that require cabin access.
Symmetric Lifts for Maximum Stability
With a wider drive through clearance, symmetric lifts are simple to operate because the four, equally long lifting arms center the vehicle in the bay, making these lifts the most stable solution for shops that regularly and predicably lift trucks, SUVs, and other passenger vehicles with longer wheelbases.
Raise Expectations, Lower Downtime
| Specifications | N210 (Flexmetric) | N210S (Symmetric) |
|---|---|---|
| Capacity | 10,000 lb/4.5 T | 10,000 lb/4.5 T |
| Overall Height | 148” (3,759mm) | 143” (3,632mm) |
| Extended Height | 172” (4,369mm) | 172” (4,369mm) |
| Overall Width | 135 1/2” (3,441 mm) | 145 1/2” (3,696mm) |
| Width Between Columns | 112 3/4” (2,864mm) | 122 3/4” (3,118mm) |
| Drive Thru Width | 92” (2,337mm) | 110” (2,794mm) |
| Under Bar Clearance | 141” (3,581mm) | 136” (3,454mm) |
| Lowered Height (standard pad fully in) | 4” (114mm) | 4” (114mm) |
| Raised Height (standard pad fully out) | 78” (1,981mm) | 78” (1,981mm) |
| Raised Height (with extensions) | 87” (2,210mm) | 87” (2,210mm) |
| Front Arm Reach | 18”-44” (457mm-1,118mm) | 33”-62” (838mm-1,575mm) |
| Rear Arm Reach | 33”-62” (838mm-1,575mm) | 33”-62” (838mm-1,575mm) |
| Lifting Time | 55 seconds | 55 seconds |
| Standard Power Requirements | 230V, 1PH, 60Hz, 20A | 230V, 1PH, 60Hz, 20A |
| *Optional Field Adjustable Height at Install | **A: 138” | A: 148” and B: 135 1/2”OR **A: 138” and B: 135 1/2” |
| ALI Certified | Yes (See part numbers) | Yes (See part numbers) |
| Part Numbers | 4TV21NSR1 (Standard, Red) 4TV21NSB1 (Standard, Blue) 4TV21NXR1 (Extended, Red) 4TV21NXB1 (Extended, Blue) | 4TV21SSR1 (Standard, Red) 4TV21SSB1 (Standard, Blue) 4TV21SXR1 (Extended, Red) 4TV21SXB1 (Extended, Blue) |
Maxx N2 Series Two Post Lift Accessories
Replaceable Rubber Pad for EV Round Double Screw Adapter
#T12100555
Sliding Arm Adapters
#T2PHA
Nickel Plated 3" and 6" Stack Pad Height Adapters
#T2PTA36
GM Frame Adapters Set of 2
#TGMTA
MAXX LIFTS
Build full shop with the Maxx Series
Maxx N2 Series Two Post Lifts are part of the Maxx Series, which includes single purpose technologies for high performing vehicle repair shops, like tire changers, automotive lifts, and air compressors that do one job and do it better than any other on the market today
Frequently Asked Questions
Standard two post lifts require a 12′ ceiling height. Bay size depends on how the lift is positioned, but generally, you should allow a minimum of 13′ in width and 20′ in length.
Lifts should always be installed on level concrete floors with a minimum of 4 inches (102 mm) and 3000 psi (20.7MPa) concrete that has been aged a minimum of 30 days. Most two post lifts require a constant supply of 230 volt – 1 phase – 60 Hz electrical power and a 20 amp circuit breaker.
The 10K offers standard and extended height options with field-adjustable settings. The 10K offers columns that are reinforced with extra steel. The 12K provides higher lifting capacity with field-adjustable height only.
Yes. All Maxx Two Post Lifts are ALI-certified and meet ANSI/ALI safety and operational standards.
Flexmetric lifts allow symmetric or asymmetric loading on the same lift, giving shops more flexibility with one piece of equipment.
Yes. Coats Connect Service offers ALI-certified inspections for any brand of lift.
We send our own factory trained, ALI-certified service techs to perform these lift inspections.
Hydraulic oil cannot be shipped with the lift and must be purchased locally. Please confirm with the lift installer that hydraulic oil is included in the installation price.
Freight and offloading costs are not included in the price of the lift. Please confirm both these costs before making a final decision.
Installation costs are not included in the price of the lift. Please confirm all installation costs (permits if required, material, electrical, hydraulic oil, labor and other costs) before making a final decision.
